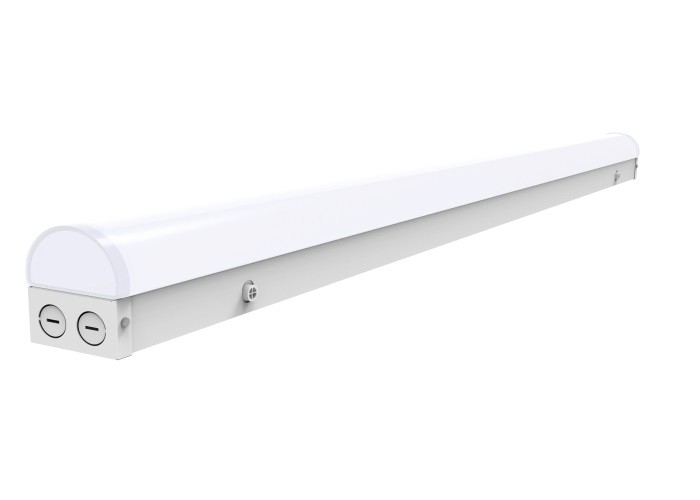

AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light

Product Details

Place of Origin: CHINA

Brand Name: Starlake

Certification: UL ETL DLC

Model Number: SS-SP05

Payment & Shipping Terms

Minimum Order Quantity: 9

Packaging Details: 632*237*274mm

Delivery Time: 7-15 Work Day

Payment Terms: T/T

Get Best Price
Highlight:

277V Surface Mount Strip Light

,

Surface Mount Strip Light 2FT

,

8FT Linear LED Light

Model:
SS-SP05
Power:
24W/32W/40W/50W/64W/70W/80W/Selectable
CCT:
3500K/4000K/5000K/Selectable
Light Distribution:
120°
Voltage:
AC120-277V/120-347V
Led:
SMD2835
Housing:
Stamping Process Heat Stink To Improve Production Efficiency
Frequency:
50/60Hz
Beam Angle:
120°
Dimmable:
0-10V Dimming
Luminous Flux:
10400LM
Name:
LED Linear Strip Light
Model:
SS-SP05
Power:
24W/32W/40W/50W/64W/70W/80W/Selectable
CCT:
3500K/4000K/5000K/Selectable
Light Distribution:
120°
Voltage:
AC120-277V/120-347V
Led:
SMD2835
Housing:
Stamping Process Heat Stink To Improve Production Efficiency
Frequency:
50/60Hz
Beam Angle:
120°
Dimmable:
0-10V Dimming
Luminous Flux:
10400LM
Name:
LED Linear Strip Light
AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light

2ft/4ft/8ft LED Linear Strip Light 0-10V Dimmable AC120-277V Surface Mount 130LM/W UL DLC5.1 Premium OH Warehouse

Product Description:

Versatile and Energy-Efficient: Introducing the SS-SP05 LED Linear Strip Light, available in 2ft, 4ft, and 8ft lengths with power options ranging from 24W to 80W. This fixture boasts a high luminous efficacy of 130 lumens per watt and offers flexible dimming capabilities via 0-10V dimmers. Suitable for damp locations and equipped with a robust design featuring snap-lock assembly and integrated bending technology for superior durability. it features a high luminous efficacy of 130 lumens per watt and a color rendering index (Ra) greater than 80.

AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 0

Features:

  • Product Name: LED linear strip light
  • Item Type: Linear Strip Light
  • Input: AC120-277V/120-347V
  • Led: SMD2835

This LED linear strip lamp is a versatile and energy-efficient lighting solution. It can be used in a variety of applications, such as under-cabinet lighting, cove lighting, and accent lighting.
The LED strip linear light features SMD2835 LEDs that provide bright, even illumination.
The LED linear tape lighting has an input voltage of AC120-277V/120-347V and can be used with a wide range of power sources.



Technical Parameters:

Part No Power Luminous Flux CCT Input Voltage Working Temperature Additional Accessory: Application Viewing Angle
SS-SP05-2FT24W 24W 3120LM 3000/4000/5000K AC120-277V
/
AC120-347V
-30°C-+50°C PIR sensor
built-in motion sensor
Emergency drive
Wire rope
ceiling accessories
Comnnecting piece
Schools
hosptitals
supermarkets
offices
warehouses
120°
SS-SP05-4FT40/32/24W 40/32/24W 5200LM

3000/4000/5000K/
Selectable

SS-SP05-8FT64/50/40W 64/50/40W 8320LM
SS-SP05-8FT80/70/60W 80/70/60W 10400LM

AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 1AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 2AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 3AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 4AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 5



Applications:

AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 6AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 7Perfect for applications such as industrial facilities, schools, and supermarkets. Roadway station, subway station, shop building, warehouse



Customization:

 AC120-277V Surface Mount Strip Light 2FT 4FT 8FT Linear LED Light 8

Support and Services:

Our LED linear strip light product comes with comprehensive technical support and services to ensure that you get the most out of your purchase.
We offer:

  • Installation assistance
  • Troubleshooting guidance
  • Warranty support
  • Product training
  • Technical documentation and resources

Our team of experts is available to help you with any questions or concerns you may have, and we are committed to providing you with the highest level of customer service.
